UPS15-58FC

$200.59

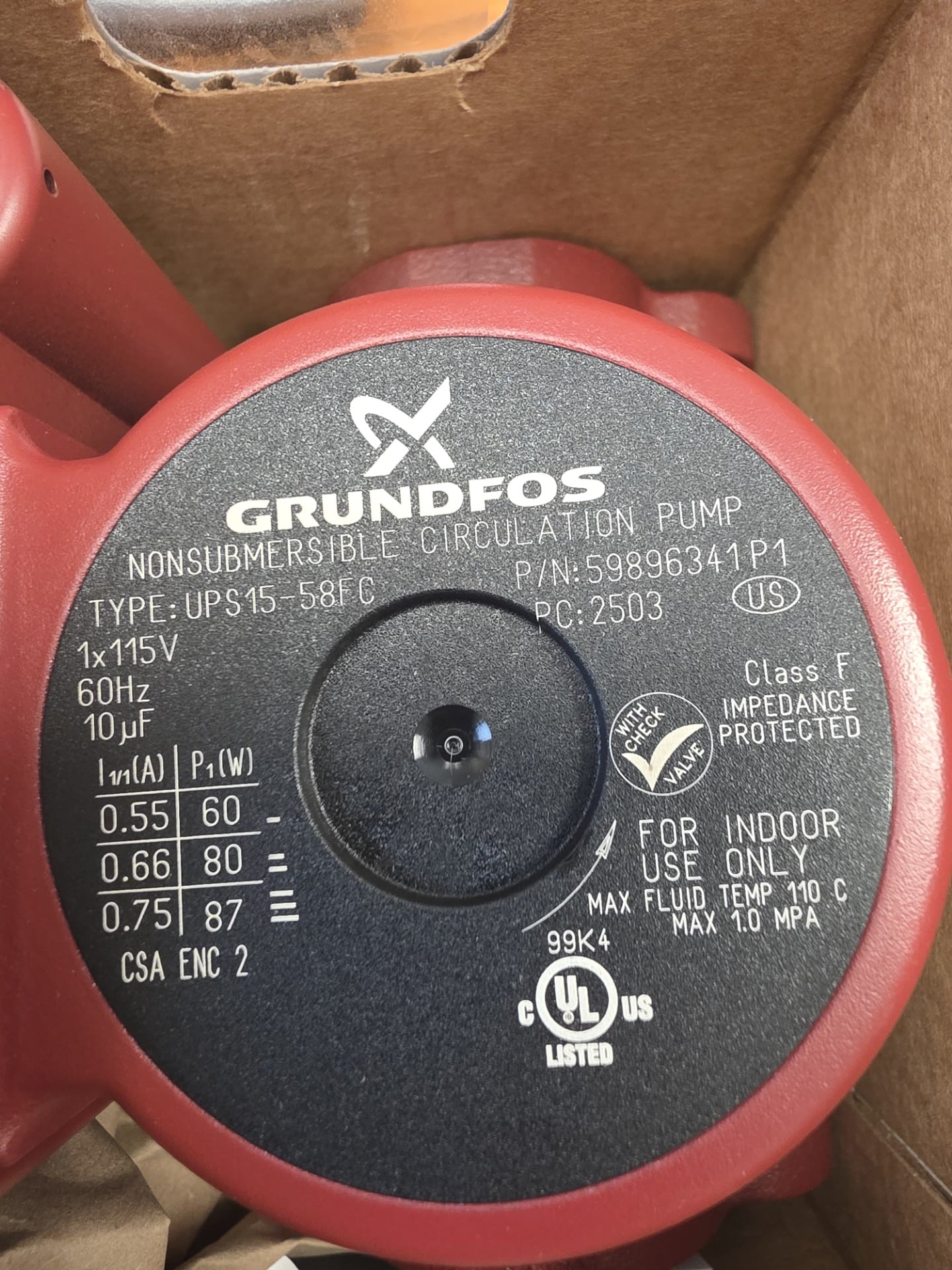

UPS15-58FC Grundfos 1/25 Hp 115V 3Sp Ci

Availability: 16 in stock

SKU UPS15-58FC Categories ,
Weight 6.8 lbs
Dimensions 7 × 7 × 7.5 in

LESS FLANGES

The Grundfos 59896341 (UPS15-58FC) Super Brute is a three-speed circulator pump featuring a cast iron housing and a removable check valve. If you’re looking for a reliable, versatile circular pump, Grundfos offers it with the Super Brute! The three-motor technology lowers noise and power consumption while the universal design eliminates more than a dozen competitive models so you don’t need as much inventory. Use it for radiant, baseboards, fan coils, zoning and more.

Features:

  • Built-in motor protection for longer life and better performance.
  • Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating,
  • solar and other system types.
  • Whisper-quiet operation for sound sensitive installations.
  • Includes (2) Gaskets (O-rings).
  • UL/CSA listed.

Technical Specifications:

  • Voltage: 115V
  • Amperage at Speed 1: 0.55 Amps
  • Amperage at Speed 2: 0.66 Amps
  • Amperage at Speed 3: 0.75 Amps
  • Hertz: 60 Hz
  • Phase: 1
  • Watts at Speed 1: 60W
  • Watts at Speed 2: 80W
  • Watts at Speed 3: 87W
  • Max Pressure: 145 psi
  • Max Temperature: 230F
  • Min Temperature: 36F
  • Flow Range: 0-17 GPM
  • Head Range: 0-19.5 ft
  • Horse Power: 1/25HP
  • Body: Cast Iron
  • Connections: Flanged 1/2″, 3/4″, 1″, 1-1/4″.
